Octaveo BGA Inspection

SPECIFICATIONS

BGA Parts
Ball Sizes 0.3 to 0.5mm
BGA Part Size 5 to 13mm
Balls / Part to 30 x 30 balls arrays

Handling

50ms min. stop time,
settled before trigger

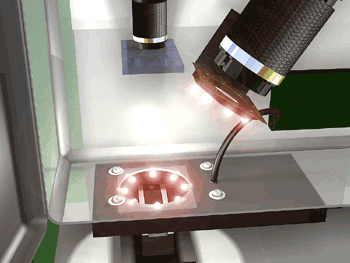

Optical System
On-Axis Resolution 1280 x 1024 pixels
Interface IEEE 1394 Firewire
Off-Axis Resolution 1280 x 1024 pixels
Interface Camera Link
On-Axis Accuracy 2% (typical)
Off-Axis Accuracy 5% (typical)
Curvature Accuracy

10% (typical)
System Throughput
Model 50 On-Axis
5 parts/sec
    (100 ms data strobe - parts in place 100 ms before trigger)

Model 80 Off-Axis 5.2 parts/sec
    with Curvature 3.0 parts/sec
    (50 ms data strobe - parts in place 50 ms before trigger)

Model 100 2.0 parts/sec
    (Combined On-Axis, Off-Axis, & Curvature processing with 100 ms data strobe -                                    parts in place 100 ms before trigger)

Model 200 2.5 parts/sec
    (Combined On-Axis, Off-Axis, & Curvature processing with 100 ms data strobe -                                    parts in place 100 ms before trigger)

Physical
Enclosure NEMA Style (Steel)
Height 41 cm (17 inch)
Width 33 cm (13 inch)
Depth 16.5 cm (6.5 inch)
Viewport 9.0 cm
I/O Signals



Trigger input
8 Outputs
Opto-isolated with 330 ohms    series resistor
Computer


Pentium 4, 3GHz, 80 GB HD,
Ethernet, LCD, Keyboard,
Windows XP Pro
Electrical Power 110V, 4A

Environment


5 to 30 deg C ;
90% humid no condensation
Minimal vibration


NOTES :-

  • Contact us for custom optics and higher camera resolutions
  • Cameras are in free running mode with standard models. Hardware triggering may be specified to improve throughput under some conditions.
